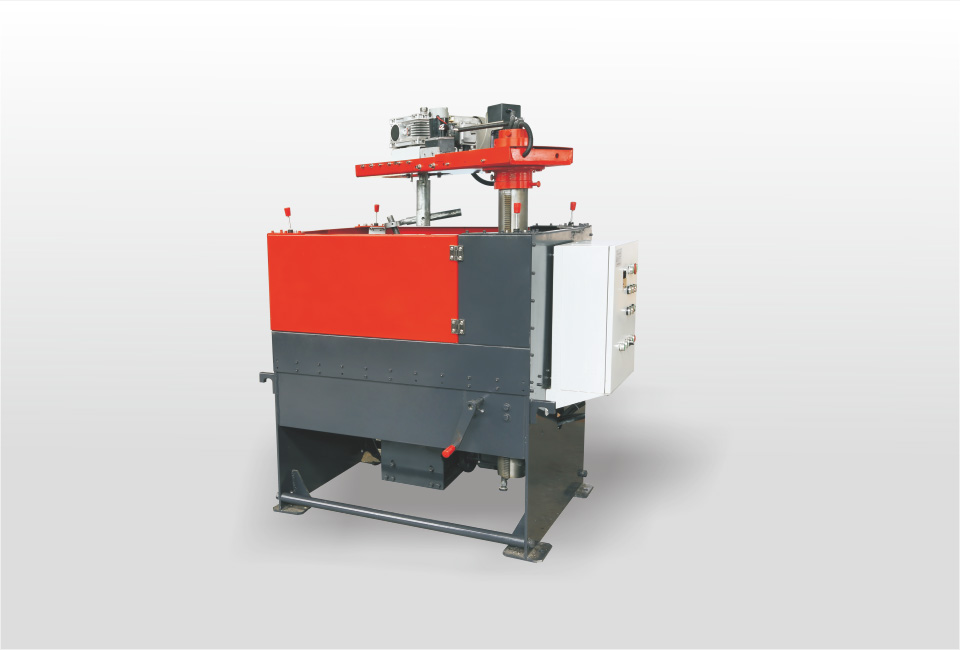

Large diameter ball valve automatic grinding machine

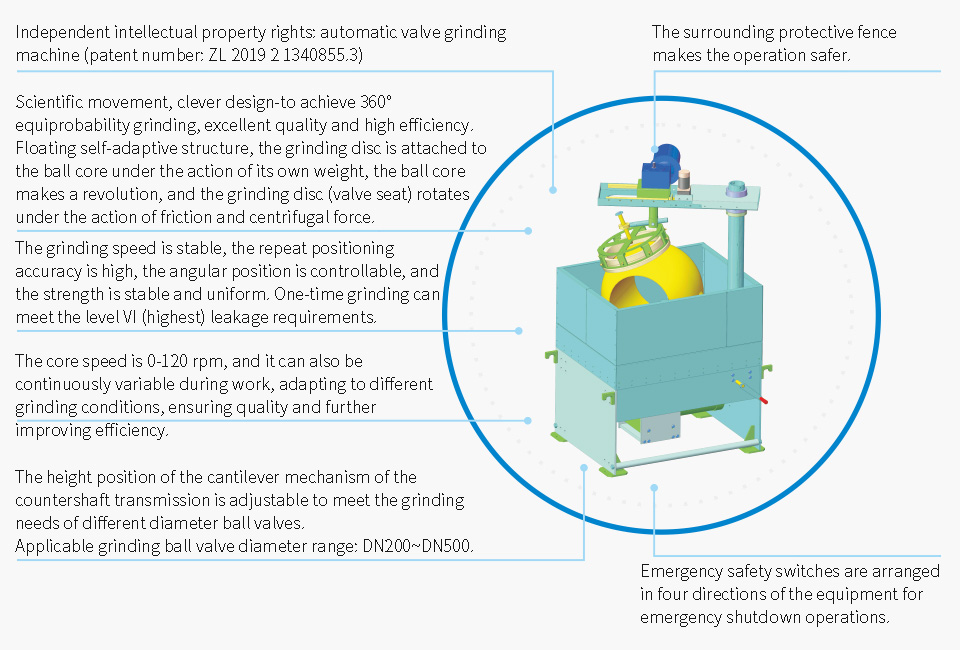

The automatic grinding machine for large-diameter ball valves is designed and developed by our company and has independent intellectual property rights. It is a special equipment for grinding the sealing surface of large-diameter metal hard-seal ball valves. It can be used for ball valve production and service maintenance, which greatly reduces labor intensity. At the same time, the production efficiency is doubled.

The main technical parameters
Item Parameter
main motor power 3kW
Power of auxiliary motor 1kW
Spindle speed Higher 120r/min
Counter shaft speed 28r/min
power supply Three-phase 380V
Dimensions 1020*840*1700
