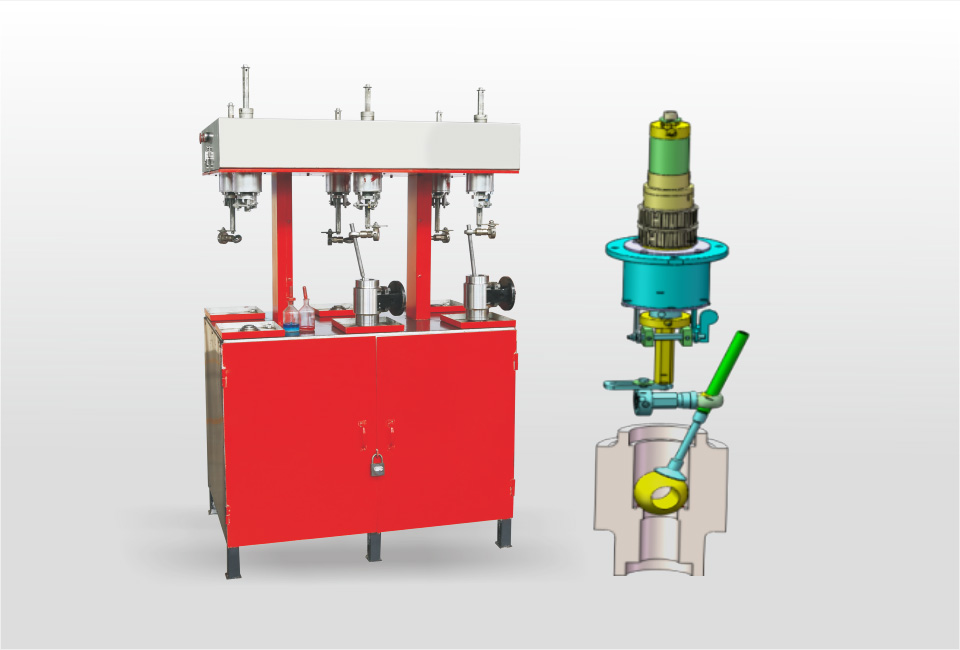

Multi-station ball valve automatic grinding machine
Overview

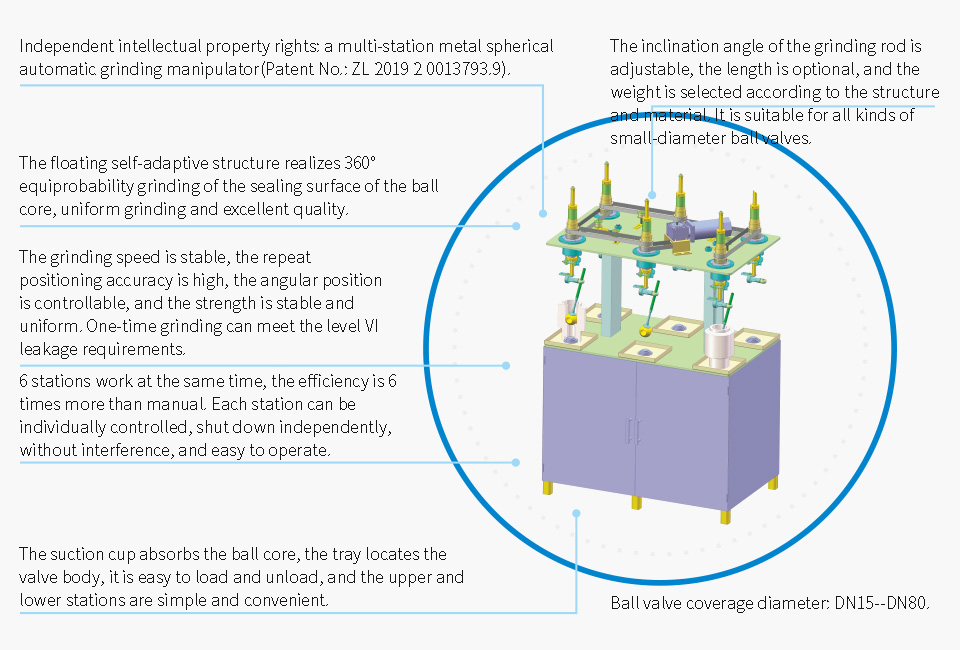

The multi-station ball valve automatic grinding machine is designed and developed by our company with independent intellectual property rights. It is a special equipment for grinding the sealing surface of small-diameter metal hard-seal ball valves, especially the one-piece hard-seal ball valve with difficult grinding and high leakage requirements. The running speed is stable, the repeat positioning accuracy is high, the grinding angle is controllable, the strength is stable and uniform, the grinding quality is good, and the matching research meets the highest leakage level. It can not only be used for ball valve production, but also serve the maintenance business, which reduces labor intensity and doubles production efficiency and releases labor.

The main technical parameters
Item Parameter
Motor Power 150W
Mandrel speed 28r/min
Rotation method Belt drive
power supply AC220V
Dimensions 1000*600*1600
